Twin Engine Data Monitor 960 System, TSO/STC, JP Instruments

900/930/960 Primary Instrument Questionnaire Order Form

Configuration & Option questionnaire must be completed prior to shipping

EDM-960 Pilots Guide - EDM-960 Approved Model List

Package Includes: Display w/Harness, EGT & CHT Probes w/Harness, Pilots Guide, USB Stick

ALL EDM SYSTEMS are TSO’d and FEATURE:

• LeanFind (tm) Performs ROP and LOP, automatically finds the first and last cylinder to peak
• Shock cooling checked on all cylinders with an alarm on the cylinder with the highest cooling rate
• Voltage, For alternator failure, monitored for over and under voltage with alarms
• Pilot Programmable Hi & Lo alarm limits. ALL programming from front panel
• All EDM’s TSO’d for quality with a 3 yr. Warranty on the Electronics
• Quick response probes, fastest accurate readings, pre-made harness and hardware
• Data Memory, reading once every 2 to 255 seconds
• EZPlot-1 program for plotting and downloading data
• USB download port built in with memory stick (730/830/790/900 Only)
• Full color TFT screen 4 inches Diagonal (730/830/790/900 Only)

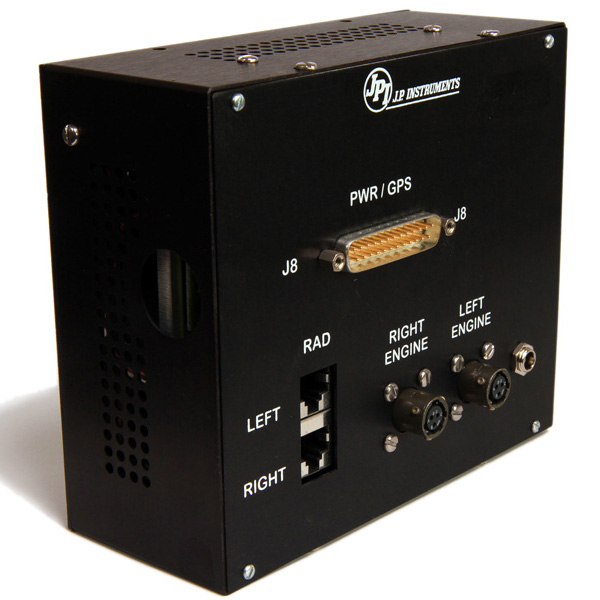

The EDM-960 is certified as a primary flight instrument. With the 960 on board, you can remove many of your old engine gauges, and open up valuable space in your panel. Featuring one DAU per engine, only 2 wires run back to the display in the cockpit. (see “fact sheet” on right) No thermocouple wires in the wings! Fly with confidence as your EDM960 acts as your full time on-board flight engineer.

JPI EDM-960 Features

• Hands-free, automatic scanning
• All programming done from the Front Panel
• LeanFind™ finds the first and last cylinder to peak with true
• peak detect eliminates false peaks
• Displays both leaned temperature below peak and peak
• Battery voltage with alarm
• Amperes (load or charge/discharge meter)
• Programmable alarm limits
• Normalize view
• Exhaust Gas Temperatures (EGTs) to stable 1°F resolution
• DIF low to high EGT with alarm
• EGTs to stable 1°F resolution
• Shock cooling monitored on every cylinder
• Shock cooling monitored on every cylinder
• User selectable index rate
• Fast response probes
• Non-volatile long term memory
• Records and stores data up to 30 hours
• Post-flight data retrieval
• Download to Palm™ Computer
• Data retrieval software
• Oil pressure
• Oil temperature
• Outside air temperature
• Fuel level
• Fuel Flow
• Solid-state rotor fuel flow transducer
• Fuel quantity in gallons, kilograms, liters, or pounds
• Low fuel quantity alarm
• Low fuel time alarm
• GPS interface
• Instantaneous fuel flow rate
• Total amount of fuel consumed
• Total fuel remaining
• Time to empty at the curent fuel flow rate
• RPM and manifold pressure
• Automatically calculates percent horsepower
• History of extreme values during previous flight
• Hobbs® timer
• Fuel pressure
• Carburetor temperature or induction temperature
• Compressor discharge temperature option
• Turbine inlet temperature

Think of your EDM-960 Twin as your personal flight engineer. Always there, working in the background, constantly watching over your engine while you concentrate on flying the aircraft. Your EDM-960 will be monitoring your engine conditions four times per second and will warn you instantly if any measurement exceeds the programmed limit.

Leaning is accomplished quickly and automatically using the LeanFind™ procedure. With the EDM it is now possible to have substantially more diagnostic information available to you in a timely and usable manner. The EDM 960 collects data and displays it for you in a useful way. You can use the EDM 960 to monitor engine temperatures and voltages, adjust the fuel/air mixture, and diagnose engine malfunctions.

JPI EDM-960 Functions

• Pre-Wired Harness for all functions
• Display SVGA
• RPM Prop
• MAP Manifold Pressure
• % HP Percent of Horse Power
• EGT Exhaust Gas Temp.
• CHT Cylinder Head Temp.
• EGT Normalize mode
• LOP/ROP JPI Exclusive Leaning Mode
• O-T Oil Temperature
• O-P Oil Pressure
• F-P Fuel Pressure (when in POH)
• OAT Outside Air Temp.
• VDC Voltage (1)
• AMP Current amps (2 twins)
• Fuel Flow Transducer FlowScan
• GPH Gallons per Hour GPH
• REQ Required to wp or destination
• USD Fuel used
• H:M Endurance Hours and Minutes
• MPG Miles per Gal
• CLD Shock Cooling on ALL cylinders
• DIFF Difference between EGT’s
• USB Memory stick 1 GB
• Data Recording 800 Hrs every 6 sec.
• EZTrends Graphing Software free
• 3 year Warranty

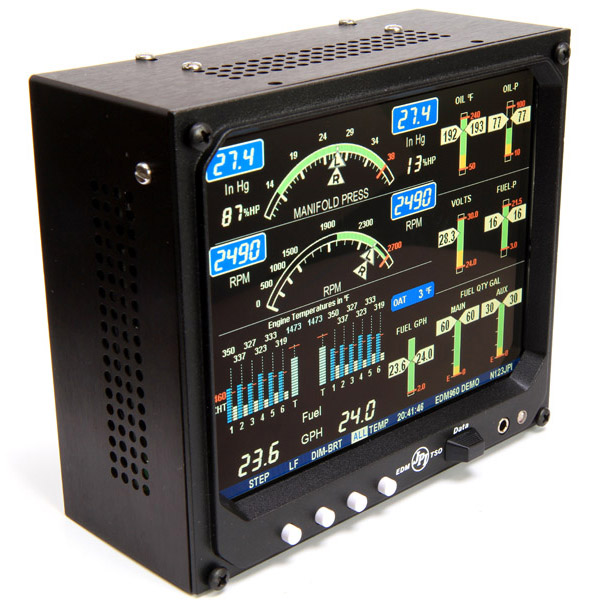

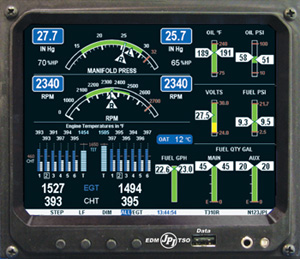

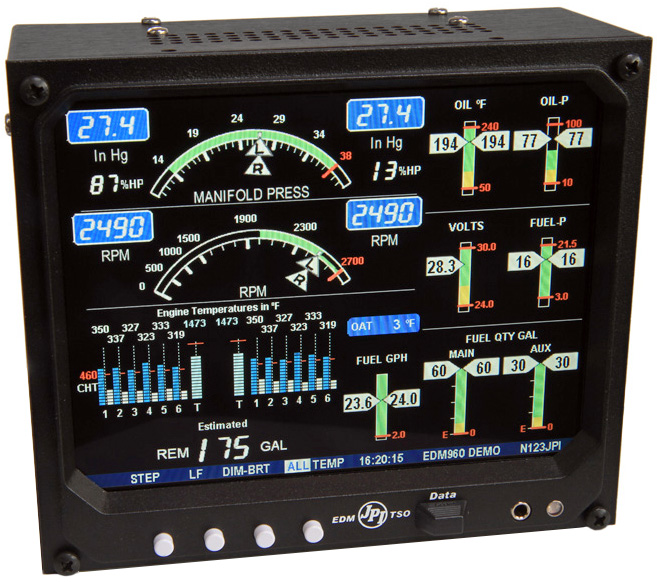

The EDM 960 is a self contained instrument. All functions or channels on the EDM are recorded at an adjustable rate of every 2 to 60 seconds per recording. The EDM-930 is sold in several versions.The display is a TFT, full VGA not 1/4 VGA display. This type of display permits a lot of latitude in placing the gages on the screen. The EDM-930 is sold in several versions.

• EDM-960 ALL IN ONE Bright VGA Display
• Pre-Wired Harness for all functions
• All EGT/ CHT probes
• Oil Pressure Transducer
• Oil Temperature Sensor
• Fuel Pressure Transducer
• Oat Sensor
• RPM Sensor, One required
• Manifold Pressure Transducer
• 100 amp Shunt (2)(for Amps)
• Volts pick-up V-1 and V-2
• 2 GB memory Download/upload stick
• FloScan Fuel Flow Transducer w/firesleeve
• Demo DVD
• 3 year Warranty

• Pre-Wired Harness for all functions
• Display SVGA
• RPM Prop
• MAP Manifold Pressure
• % HP Percent of Horse Power
• EGT Exhaust Gas Temp.
• CHT Cylinder Head Temp.
• EGT Normalize mode
• LOP/ROP JPI Exclusive Leaning Mode
• O-T Oil Temperature
• O-P Oil Pressure
• F-P Fuel Pressure (when in POH)
• OAT Outside Air Temp.
• VDC Voltage (1)
• AMP Current amps (2 twins)
• Fuel Flow Transducer FlowScan
• GPH Gallons per Hour GPH
• REQ Required to wp or destination
• USD Fuel used
• H:M Endurance Hours and Minutes
• MPG Miles per Gal
• CLD Shock Cooling on ALL cylinders
• DIFF Difference between EGT’s
• USB Memory stick 1 GB
• Data Recording 800 Hrs every 6 sec.
• EZTrends Graphing Software free
• 3 year Warranty

The EDM 960 is a self contained instrument. All functions or channels on the EDM are recorded at an adjustable rate of every 2 to 60 seconds per recording. The EDM-930 is sold in several versions.The display is a TFT, full VGA not 1/4 VGA display. This type of display permits a lot of latitude in placing the gages on the screen. The EDM-930 is sold in several versions.

• EDM-960 ALL IN ONE Bright VGA Display
• Pre-Wired Harness for all functions
• All EGT/ CHT probes
• Oil Pressure Transducer
• Oil Temperature Sensor
• Fuel Pressure Transducer
• Oat Sensor
• RPM Sensor, One required
• Manifold Pressure Transducer
• 100 amp Shunt (2)(for Amps)
• Volts pick-up V-1 and V-2
• 2 GB memory Download/upload stick
• FloScan Fuel Flow Transducer w/firesleeve
• Demo DVD
• 3 year Warranty
